Resolving Catastrophic Drivetrain Failure

Heavy industrial mechanics operate under physics that actively attempt to destroy power transmission infrastructure. A common, yet highly critical inquiry from procurement engineers conducting failure analysis is, Šta je lanac i lančanik? In a high-impact environment, it is not merely a flexible drive; it is a rigid kinetic bridge that must transfer massive horsepower without undergoing plastic deformation. When a commercial earthmover or a heavy lumber debarker encounters an immovable obstruction, the spinning prime mover sends a violent, instantaneous shockwave straight backward through the drivetrain.

Standard chains fail in two highly predictable phases during these events. First, the relatively thin side plates physically yield and stretch. Second, the case-hardened pins—which feature a brittle outer crust and a soft internal core—bend under the transverse shear stress and snap completely inside the bushing. The SH Series intercepts both failure modes simultaneously. It utilizes heavily augmented inner and outer link plates that perfectly match the thickness of the next larger ANSI pitch dimension. This massive addition of steel completely halts plate yielding. However, thicker plates place exponentially higher shear stress onto the connecting pins. To counteract this, the SH Series deploys a radical metallurgical upgrade.

Metallurgical Profiling: The Through-Hardened Advantage

The functional superiority of the SH Series is derived entirely from its internal pin chemistry. Rather than relying on superficial carbonitriding or shallow case-hardening, the alloy pins in the SH series are subjected to intense, prolonged thermal processing that hardens the steel entirely through its cross-sectional diameter. This creates a dense, highly uniform martensitic core.

This metallurgical decision dictates that the SH Series provides an unmatched fatigue limit. It is explicitly designed for sistemi lančanika i lanaca where continuous high-impact loading is the normal operating condition, guaranteeing that the drivetrain survives unpredictable terrain and severe mechanical blockage.

Precision Engineering Tolerances & Dimensions

A paramount advantage of the SH format is its physical interchangeability. The external dimensional envelope—specifically the pitch (P), roller diameter (d1), and inner width (b1)—is manufactured to remain completely identical to ANSI heavy series standard configurations. This allows maintenance engineers to execute a massive strength upgrade on existing machinery without the exorbitant cost of replacing the rotating hubs or modifying internal chassis clearances. The data matrix below documents the rigorous empirical parameters.

* Technical Note: For designations explicitly marked with an asterisk, the linkage operates as a bush chain. In these micro-pitch variants, the d1 dimension indicates the external diameter of the fixed internal steel bushing, as they are manufactured without a free-spinning outer roller.

Kinematic Internal Anatomy

To properly maintain these high-strength assemblies, technicians must fully understand how individual components interact under load. The anatomija lanca systems dictates that any failure at a micro-level will cascade into a macro-system shutdown. The Link Plate acts as the primary tension membrane, directly receiving occasional massive shocks during power transmission; the SH series reinforces this with thickened, shot-peened steel. The Roller acts as a physical buffer, requiring immense collapse strength to protect the internal bushing from the high-velocity impact of the sprocket gear. The Bushing functions as the static bearing, receiving massive compressive forces while providing a precise, polished surface for the pin to articulate against.

During installation, precise segment joining is required. A standard Connecting Link (master link) allows for rapid field installation of segments with an even number of pitches. In SH applications, these connecting pins are fiercely retained using hardened spring clips or heavy-gauge cotter pins. Conversely, an Offset Link (half-link) is utilized strictly to adjust the total loop length by a single odd pitch. However, mechanical designers heavily caution against integrating a single-pitch offset link in high-stress environments. Because the side plates of an offset link are physically bent (cranked) to fit inside the next link, they introduce a structural weak point, frequently reducing the overall ultimate tensile capacity of the transmission by up to 20%. If an odd pitch count is absolutely unavoidable due to strict chassis limitations, engineers strictly mandate the use of a Two Pitch Offset Link. This specialized component permanently fuses a standard inner link to an offset link at the factory, restoring a large degree of the structural rigidity lost by a standalone offset plate.

Drivetrain Synchronization: Hub Anatomy

The immense pulling power of the SH Series dictates stringent requirements for the receiving rotary hubs. A critical maintenance failure occurs when operators install a brand new, highly rigid SH linkage over severely worn, hooked gear teeth. Understanding the anatomija lančanika is essential to prevent rapid destruction. A high-quality hub features a precisely CNC hobbed involute curve. As the solid rollers drop into the root cavity under massive tension, the hardened teeth guide the rollers seamlessly without aggressive metal-on-metal sliding.

Because the SH Series perfectly mirrors the dimensional envelope of standard ANSI Heavy linkages, it is fully compatible with standard ANSI Heavy Series sprockets regarding width and roller clearance. However, to handle the massive torque ratings output by the SH chain, we strongly advise utilizing hubs featuring high-frequency induction hardened teeth (achieving HRC 45-50). This exact, targeted thermal treatment dramatically resists the abrasive friction of the high-speed rollers while intentionally maintaining a ductile, softer core within the sprocket body to absorb unpredictable machine vibrations without shattering. Operating a brand new, high-tensile SH linkage on severely worn sprocket teeth will force the deformed gear geometry to forcefully grind away the hardened surface of the new rollers, effectively cutting the lifespan of the newly installed transmission upgrade in half. Always explicitly replace the toothed hubs simultaneously when upgrading to an SH configuration. For multi-strand applications (duplex or triplex), the pogonski lanac sprockets must be hobbed precisely to match the expanded Transverse Pitch dimension to avoid catastrophic inner-plate collisions.

Field Deployment Scenarios

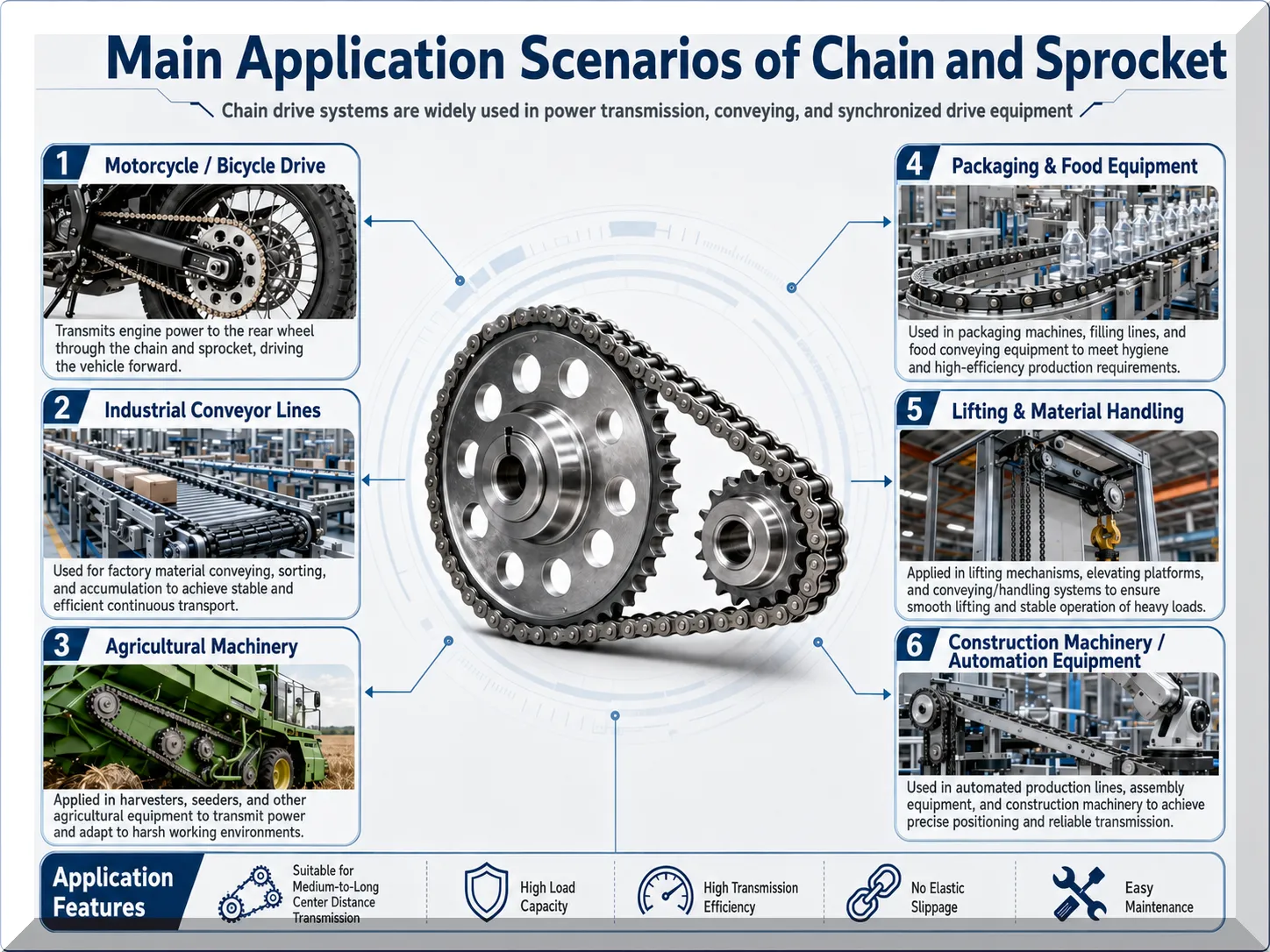

The uncompromising tensile capacity and extreme shock resistance of the SH Series allow it to thrive in the absolute apex of heavy industrial environments globally.

ISO certificirana proizvodna infrastruktura

Achieving a consistent, mathematically verified 35% increase in tensile strength requires an infrastructure dedicated entirely to extreme metallurgical science. At Korea Ever-Power Chain and Sprocket Co.,Ltd, our heavily automated production lines operate strictly under ISO9001 and API certifications. By entirely removing manual inconsistencies from the thermal processing and assembly phases, we deliver a globally recognized benchmark for industrial durability.

Furthermore, every SH chain undergoes aggressive hydraulic pre-loading before entering our vacuum packaging stations. Maintaining dimensional stability right out of the box is the hallmark of professional industrial manufacturing. When a standard commercial drive is newly installed, the micro-imperfections remaining from stamping begin to seat under the initial motor load, causing the entire assembly to suddenly elongate during the first 48 hours of operation. By physically pulling the assembly to roughly 30% of its ultimate breaking limit on the factory floor, we permanently seat the internal components, guaranteeing a zero-stretch startup when the part reaches your facility. Without excessive initial chain stretch, you experience substantially less wear on the drive sprockets, drastically increasing your operational uptime.
